Propane Regulators

Regulator GPL Low Pressure 30 Mbar

Technical Data
Inlet connection: W20×1/14" LH
Outlet connection: Hose nipple 8 mm

Propan Regulator 0,5 - 4 Bar

Technical Data
Art. Nr. Inlet
Connection 		Outlet
Connection 		Outlet
Pressure 		Flow
0760964 0,880-14NGO LH G3/8"LH 4 bar 16kg/h
0760547 W21,8x1/14" LH G3/8"LH 4 bar 16kg/h
0760960* SI21,7x1,814"LH M16x1,5 LH 2 bar 8kg/h
0760920* W21,8x1/14" LH G3/8"LH 2 bar 8kg/h
0760871 SI21,7x1,814"LH M16x1,5 LH 4 bar 16kg/h
0760961 W21,8x1/14" LH G3/8"LH 4 bar 16kg/h
0760917 W21,8x1/14" LH G3/8"LH 4 bar 16kg/h
A100520EMB** SI21,7x1,814"LH M16x1,5 LH 4 bar 16kg/h
A100523* SI21,7x1,814"LH M16x1,5 LH 4 bar 16kg/h

Propan Regulator 4 Bar

Outlet pressure: 0,5 - 4 bar

Technical Data
Inlet connection: SI21, 7 x 1, 814″ LH
Outlet connection: 814″ LH - G3/8″ LH

Propan-Butan Regulator 0,5 - 4 Bar

Regulator with gauge and integrated hose break valve.

  • Suitable for 5, 11 or 33 kg gas cylinders
  • Outlet pressure: 0,5 - 4 bar
  • Capacity: 14 kg/h
Technical Data
Inlet connection: W 21,8 × 1/14" LH
Outlet connection: G3/8" LH

Propan-Butan Regulator 1, 5 Bar

Outlet pressure: 1,5 bar

Inlet connection: W21, 8 x 1/14" LH
Outlet connection: G3/8" LH

Propan-Butan Regulator 0, 5 - 4 Bar, Without Gauge

Regulator with integrated hose break valve.

  • Suitable for 5, 11 or 33 kg gas cylinders.
  • Outlet pressure 0,5 - 4 bar.
  • Capacity: 14 kg/h.
Inlet connection: W 21,8 × 1/14" LG
Outlet connection: G3/8" LH

Regulator Propane Butane Fix 2 Bar

  • Suitable for small gas cylinders 425 g.
  • Capacity: 4 kg/h
Technical Data
Inlet Quantity connection: G3/8" LH
Outlet Quantity connection: G3/8" LH

Propan-Butan Regulator 2 Bar Fix, SBS

Outlet pressure: 2 bar

Technical Data
Inlet connection: W21, 8 x 1/14" LH
Outlet connection: G3/8" LH

RTP Regulator

Art.Nr.

Type

Inlet pressure

Outlet pressure
 		Nominal flow rate
548900060704P

RTP 21

 1-8 bar 30 mbar 1,5 kg/h
548900060707P

RTP 3

 1-8 bar 30 mbar 3,0 kg/h
548900060708P

RTP 4

 1-8 bar 50 mbar 3,0 kg/h

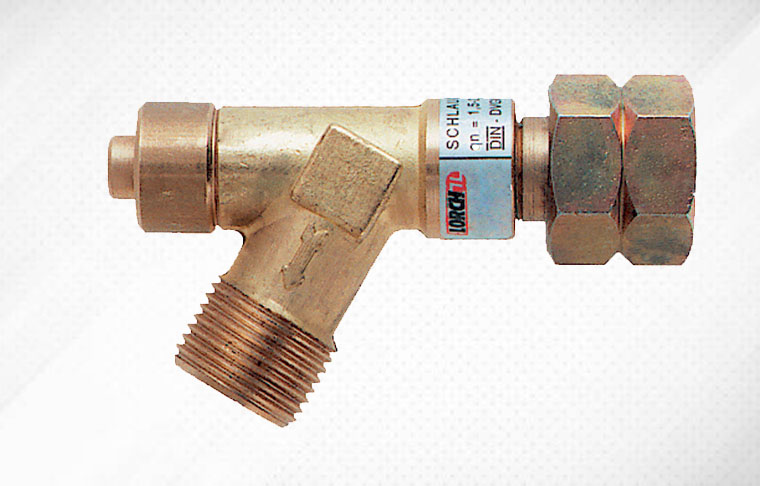

Hose Break Valve SBS

Designed to fit on outlet connection of the regulator.

Use :

A safety valve for immediate gas flow shut-off in case of sudden flow increasing (hose damage).

Art.Nr. Description Nominal flow rate
1,5 bar 		Nominal flow rate
4 bar
3087 SBS 1 1,5 kg/h 2,2 kg/h
3111 SBS 2 4 kg/h 6  kg/h
3129 SBS 3 6  kg/h 8,5 kg/h
3202 SBS 4 10  kg/h 14  kg/h
