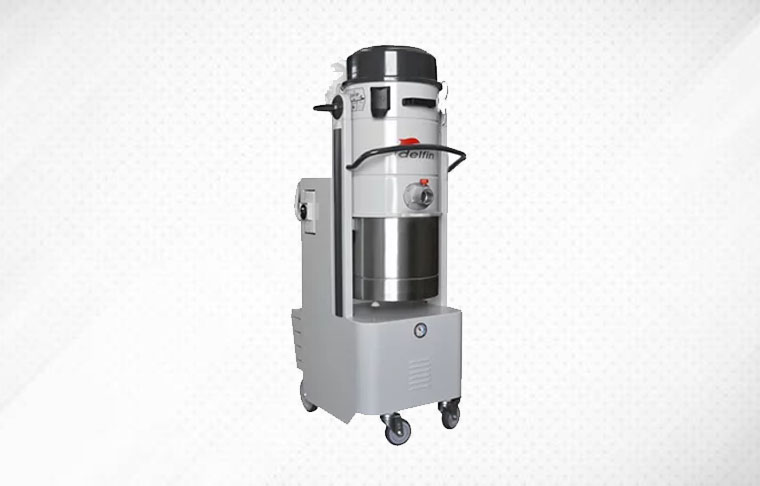

PHARMA 20 EX1/2D - Vacuum Cleaner For Food And Pharmaceutical Industry
Advantages :
- ATEX certified vacuum Cleaners for Zone 22,20/22,20/21,2 & 1 area.
- ATEX certified dust collectors for online vacuum.
- Comprehensive range of machines – small to large- From 1.8kw to 25Kw models.
- ATEX certified Stand-alone & Centralized Vacuuming system.
Specifications :
| Zone | 20 / 21 |
|---|---|
| Marketing | Ex II 1/2D Exh IIIB T160°C Da/Db |
| Voltage | 400 - 50 V-Hz |
| Power | 2.2 KW |
| Electrical protection | 65 |
| Max waterlift | 1800 mmH₂O |
| Max air flow | 250 m³/h |
| Suction inlet | 50 mm |
| Noise level (EN ISO 3744) | 67 dB(A) |
| Filter Type | Cartridge |
| Surface - Diameter | 30000 - 360 cm²-mm |
| Material - Efficiency | Polyester M (IEC 60335-2-69) |
| HEPA Filter - H14 | 20500 (Filter Surface cm²) |
| Cleaning system | Dustop |
| Discharge system | Detachable SS 304 Container |
| Capacity | 33 LT |
| Dimensions | 47X69X135h cm |
| Weight | 75 kg |
