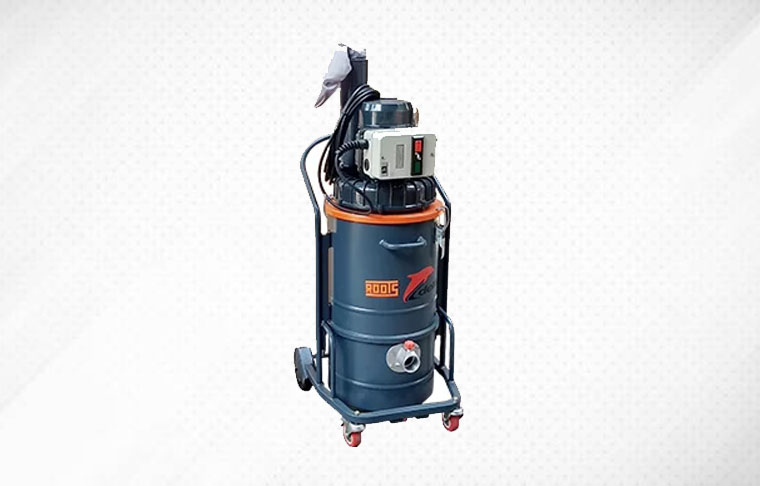

Mistral 202 - Dry Industrial Vacuum Cleaner
The Mistral 202 Dry Industrial Vacuum Cleaner DS ECO version with its side channel blower placed on top of the filter & collection body, reduces even more the overall dimensions and guarantees high mobility even in the narrowest working spaces. Available in filtration classes. M and H – suitable for suction of fine dust.
Suction Unit
The filter is placed and protected inside the filter chamber and consists of a filter cartridge made of conductive polyester with extra large filter surface and a high filtration efficiency, filter clean for Manual filter shaker. A sturdy suction inlet enables to suck up the material in a position below the filter, this reducing its impact and clogging effect.
Filtration
The filter is placed and protected inside the filter chamber and consists of a filter cartridge made of conductive polyester with extra large filter surface and a high filtration efficiency, filter clean for Manual filter shaker. A sturdy suction inlet enables to suck up the material in a position below the filter, this reducing its impact and clogging effect.
Specifications :
| Power | 1.8 KW |
|---|---|
| Voltage | 230 V 50 Hz |
| Vacuum Pressure | 2300 mm H2O |
| Airflow | 250 m3/h |
| Tank capacity | 62 L |
| Filter surface Area | 30,000 cm.sq |
| Filter efficiency | 1 micron |
| Air load on filter | 84 m3/m2/h |
| Capacity | 20 L |
| Suction Inlet | 60-38 L |
| Noise Level | 72 db(A)+5 |
| Protection | IP 55 |
| Filter Type | Catridge - Polyester Material |
| Dimensions(LxWxH) | 500 x 480 x 1150 mm |
| Weight | 30 kgs |
